2.0MM Pitch 2 x 40P Box Header Right Angle Dip Connector

Brand Name : DZ

Model Number : Right Angle Dip Connector

Place of Origin : CHINA

MOQ : 100 Pieces

Price : 100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week Right Angle Dip Connector

Delivery Time : 7 Days

Packaging Details : Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required

Type : Pin Header Connector

Application : PCB

Packaging : Tape & Reel (TR)

Description : 2.00mm Box Header Connector

Gender : Male, Computer

Pins : 80P

Color : Black

Current Rating : 3 AMP

Contacts Material : Phosphor Brozen

Plating : Goldplated

Package : Plastic Reel

Temperature Range : -25~+80

Lead time : 3-5days

Supplier Type : Original manufacturer

Pin or Socket : Pin

Impedance : 50Ohm

Material : LCP

Specifications : DIP Box Header Connector

Number of Positions : 80P

Pitch : 2.00mm

Number of Rows : 2Rows

Mounting Type : DIP

Connector Usage : PCB Board

Number of Columns : 20

Voltage - Rated : 5V

Number of Positions/Bay/Row : 2

Board Thickness : 1.6MM

Contact Now

2.0MM Pitch 2 X 40P Box Header Right Angle Dip Connector

# Right Angle Dip Connector Properties

2.0MM Pitch 2 X 40P Box Header Right Angle Dip Connecto
1.MATERIAL:
Plastic Material:	LCP
Contact Material:	Phosphor Brozen
Contact Plating:	Gold Plating
2.MECHANICAL PERFORMANCE
INSERTION FORCE	5N~20N
WITHDRAWAL FORCE	INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N
DURABILITY	10000 CYCLES
3.ELECTRICAL PERFORMANCE
CURRENT RATING	3 A
CONTACT Resistance	40mΩ MAX(INITIAL)
Withstand Voltage	AC 500V
INSULATION RESISTANCE:UNMATED	100MΩ MIN

2.0MM Pitch 2 x 40P Box Header Right Angle Dip Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.

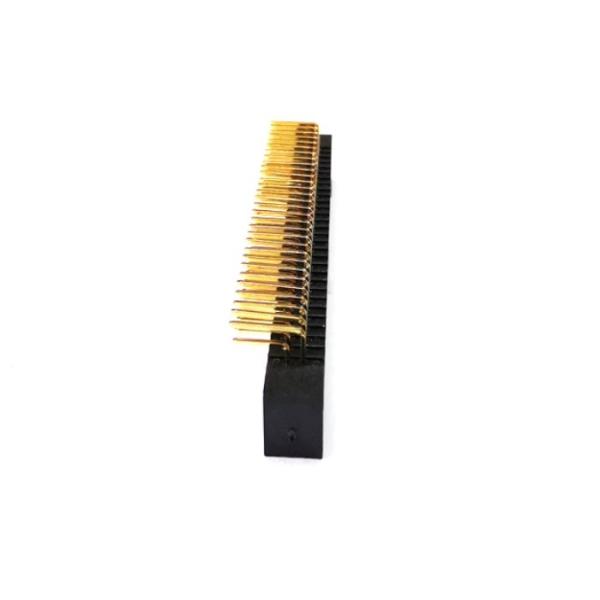

2.0MM Pitch 2 x 40P Box Header Right Angle Dip Connector Images
