Pitch 2.0mm 6P Box Header Vertical DIP Waterproof Electrical Connector

Product Categories
DZ Iron Steel Group
Contact Now

Pitch 2.0mm 6P Box Header Vertical DIP Waterproof Electrical Connector

Brand Name : DZ

Model Number : DZ2589-GJ85

Certification : ISO9001 | CE | ROHS | REACH | MSDS | SGS

Place of Origin : CHINA

MOQ : 100 Pieces

Price : 100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week DIP Connector

Delivery Time : 7 Days

Packaging Details : Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required

Type : Pin Header Connector

Packaging : Tape & Reel (TR)

Description : 2.00mm Box Header Connector

Gender : Male, Computer

Pins : 6P

Color : Black

Current Rating : 3 AMP

Contacts Material : Phosphor Brozen

Plating : Goldplated

Package : Plastic Reel

Temperature Range : -25~+80

Lead time : 3-5days

Supplier Type : Original manufacturer

Pin or Socket : Pin

Impedance : 50Ohm

Application : PCB

Material : LCP

Specifications : Vertical Dip Box Header Connector

Pitch : 2.0mm

Number of Rows : 2Rows

Mounting Type : DIP

Connector Usage : PCB Board

Number of Columns : 2

Voltage - Rated : 5V

Number of Positions/Bay/Row : 2

Shell Material : PBT

Current Rating (Amps) : 3A

Voltage Rating : 5V

Contact Now

2.0mm Pitch 6P Box Header Vertical DIP Connector

# DIP Connector Properties

2.0mm Pitch 6P Box Header Vertical DIP Connector

1.MATERIAL:

Plastic Material:

LCP

Contact Material:

Phosphor Brozen

Contact Plating:

Gold Plating

2.MECHANICAL PERFORMANCE

INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

3 A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN

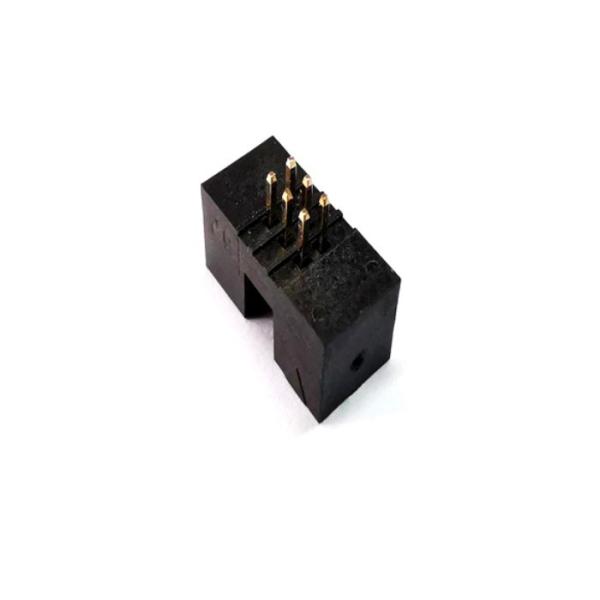

Pitch 2.0mm 6P Box Header Vertical DIP Waterproof Electrical ConnectorPitch 2.0mm 6P Box Header Vertical DIP Waterproof Electrical Connector

Pitch 2.0mm 6P Box Header Vertical DIP Waterproof Electrical Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
